The next evolution in single stage compression

Next Turbo Technologies

The product

PRODUCT

Next Turbo designs and produces robust and high efficient Integrally geared, single stage, centrifugal turbocompressors with variable diffuser vanes and/or inlet guide vane control.

Two frame families available:

Image description

The innovative GTB series

Integrated, compact and high-efficient

The GTB series features a compact design with reduced lubrication oil reservoir located in the gearbox, integrated oil distribution and hydrodynamic-housed hybrid ceramic bearings. Eliminating the pre-lubrication oil pump and the quantity of lubrication required during operation, the GTB achieves unparalleled low energy consumptions. This series is currently available for machines up to 500 kW drive power.

The core compressor can be shipped in a baseframe configuration with foot mounted electrcial drive motor or in a compact console configuration with flange mounted motor and self-aligning fexible coupling.

Image description

The traditional GTH series

Hydrodynamic bearing for large airflows

The GTH series features hydrodynamic tilting pad bearings for large airflows. Our current range extends up to 2,000 kW drive power - see more in portfolio overview below.

Due to the larger oil reservoir located inside the base and the required pre-lubrication pump this series is available only in the baseframe configuration.



All packaged in two distinct enclosure solutions:

Image description

Compact Plug & Play

With integrated softstarter, pre-cabled and tested

The GTB series, due to its compactness can be integrated into a fully enclosed, pre-cabled, pre-tested plug & play enclosure for immediate placement into the blower room. The package houses an integrated blow-off valve, Local control panel and even the motor control center (MCC) with softstarter, direct start or VFD starter..

A greatly reduced installation and commissioning effort. Reduces on-site works to a minimum.

Get a closer look: compact enclosure promo video
Image description

Modular Enclosure Package

Customizable acoustic enclosure

The GTB and GTH series can be packaged into the modular acoustic enclosure. The enclosure is build around the machine on-site and can be adapted to the spedcifi requirements of the blower room and process piping. For example, the discharge direction can be adjusted in 15 degree intervals.

A versatile solution for all blower room conditions.




The product naming explained

The diagram to the right shows the frame breaks within the GTB and GTH series. Above approximatly 1.45 bar(g) our special high pressure series starts. For a detailed selection use the form below or approach your local sales representative for a free-of-charge quotation.

GTB-T20-XZ

GTGeared Turbo Compressor
BIndicates if the compressor is equipped with hybrid ceramic bearings 'B' or hydrodynamic bearings 'H'
T20Describes the frame size Turbo 20 (10,20,30,40,50,60)
XZThe final naming code 'XZ' (X, Y, XY, XZ) describes the compressor regulation control, here Diffuser with low frequency VFD
Contact us

Typical Installation

Modular enclosure GTB or GTH type

  1. GTB/ GTH compressor core
  2. Common Baseframe (GTH= with oil tank)
  3. Electrical main drive motor (LV/ MV)
  4. Flexible Machine mounts
  5. Flexible compensator
  6. Silencer/ Conical diffuser
  7. Blow-off valve with silencer
  8. Check-/non-return valve
  9. Isolation valve
  10. Inlet filter compartment (G2+G4)
  11. Inlet silencer (labyrinth type)
  12. Modular acoustic enclosure
  13. Air:oil cooler (on top/ inside/ or outside)
  14. Enclosure heat extraction fan
  15. Local Blower control Panel (LCP)
  16. Master Control Panel (MCP or MCP-DO)

Blower configurations

Flexible baseframe configuration

  1. Blower input shaft (slow shaft)
  2. Bull gear
  3. Pinion shaft (fast shaft)
  4. Project specific Impeller - open radial type
  5. Variable Diffuser Vanes (VDV)
  6. Vibration monitoring
  7. Variable diffuser actuator with limit switches
  8. Inlet Guide Vane actuator with limit switches
  9. Inlet Guide Vanes (IGV)
  10. Volute casting (GJS-400, former GGG40)
  11. Gearbox casting (GJS-400, former GGG40)
  12. Mechanical oil pump, driven by slow shaft
  13. Common baseframe (GTH = including oil tank/ electrical oil pump)
  14. Flexible Machine mounts
  15. Flexible Coupling with coupling guard(
  16. Blower junction box (all instrumemt pre-wired)
  17. Electrical main drive motor (LV or MV) -foot mounted
A reliable and robust blower

Re-Imagined for the 21th century

The technology behind

TECHNOLOGY

Image description
reliable
a proven technology
efficient
PLC-based intelligent optimization
versatile
wide pressure-constant flow regulation
non-propriatary
IEC Motors, Bearings and PLC
minimal maintenance
serviceability on the plant
long life bearing
hybrid ceramic or hydrodynamic
integrally-geared
compact and robust design
inlet guide vanes
efficiency optimization
diffuser vanes
100-40% wide flow control
custom milled impeller
forged Aluminium alloy
Image description
Learn more in our explainer video: Product Advantages
Image description

Variable diffuser vanes

For pressure constant, widest flow regulation

The variable diffuser vane (VDV) system regulates the airflow from <40-100% of design value with constant speed of the drive. The regulation is achieved without a pressure drop on the discharge.

Learn more in our explainer video: Diffuser control
Image description

Inlet Guide Vanes

For power optimization in fluctuating ambient conditions

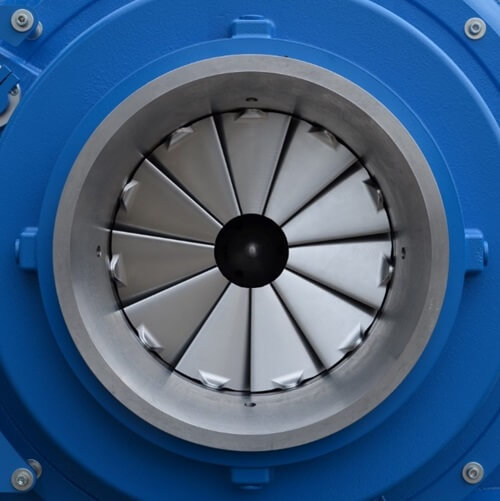

The inlet guide vane (IGV) system pre-rotates the icoming air and adapts the compressor envelope to fluctuating ambinet conditions. Resulting in drastically reduced efficiency drop in off-design operation. In combination with the VDV system, our 2-point control can operate in the widest airflow range with optimal efficieny. The refined algorythm yields best-in-class results.

Learn more in our explainer video: 2-point control
Image description

Custom milled impeller

The impeller shape that fits your location and process ... for improved efficiency

The impeller and impeller blade geometry is calculated individually for each project; adjusted in combination with the diffuser vane geometry. Variables that are consdiered in the customization are: ambient conditions (air temperature, humidity and barometric pressure) and air flow and pressure requirements. For an optimum compression of ambient air for your aeration or oxidation requirements.

Image description

Serviceability

Designed for reduced and ease of maintence

Next Turbo compressors are designed with an eye on maintainability and ease-of-maintenance. We are proud about the fact that life-prolonging service on-site can be done. The remainig lifetime can be estimated - no surprises with black-box components.

The design of the blower allows for the majority of maintenance tasks to be performed by plant personelle - after an initial training and if so wanted. Our local service centers and partners are of course avaialble for the task as well.

Learn more in our aftermarket section
Preventive Maintenance:
Don't start today by doing yesterday's work.

Deniece Schofield

MAINTENANCE AND SERVICES

AFTERSALES

The below service products are offered for the Next Turbo installed fleet. Selected items are also offered for Other-OEM fleets. We hold large, long term service agreements for a mixture of installed brands covering whole plants or whole areas with multiple plants. Approach us and let us discuss your service needs.

Service products we offer:

Preventive Maintenance & Long term contracts

If individual regular machine services or long term maintenance contracts, Next Turbo and your local partners have you covered.

Condition based Maintenance

Let us develope a maintenance scheme that fits your operation scheme. Combined with the remote monitoring services we keep an eye out for your investment.

Original Spare parts

Spare parts security due to non-propriatary components. We stock all parts in our main factory and critical items in selected local service hubs.

Troubleshooting & Repairs

Troubleshooting through remote dial-in or physical investigation on-site - we have quick reaction times and utilize wide spectrum of tools avaialble.

Installation, Commissioning & Training

We or our local partner support in installation and the initial start-up. We train your staff in operation, maintenance and even regular preventive "Service A" handling.

Remote Monitoring

Let us together keep an eye on the performance and health of your machines. Read more below.

Image description


Image description
